SHINING 3D EINSTAR 3D SCANNER
SHINING 3D EINSTAR 3D SCANNER

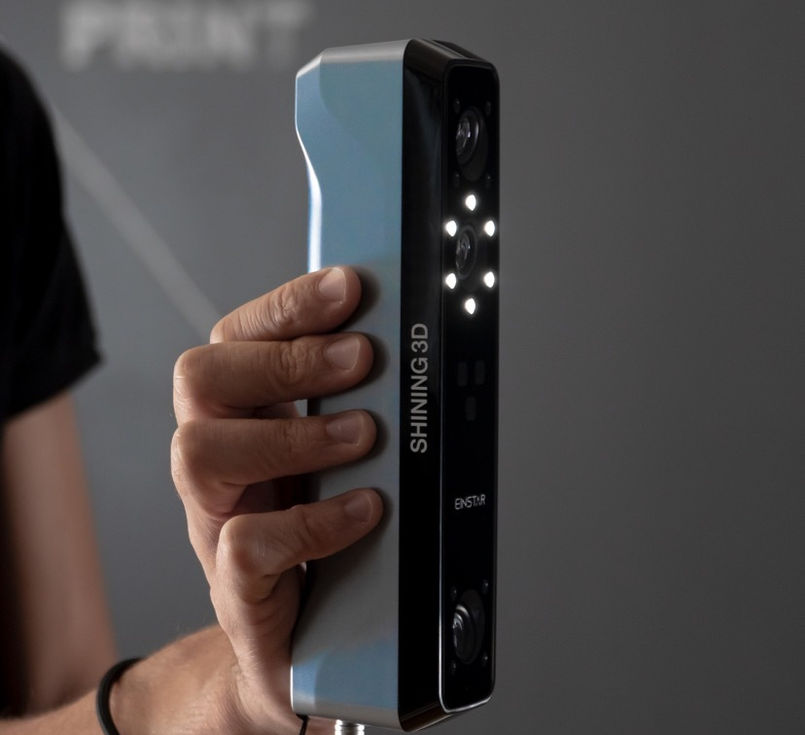

The EinStar 3D scanner is an affordable handheld 3D scanner perfect for schools. With 3 Infrared VCSEL Projectors, 2 Stereo Depth Cameras and 1 RGB Camera, Einstar can capture clear scan data and generate stable outputs outdoors. Provide a flexible working distance for small and large objects. Extremely easy to use ergonomic design. Convenient one USB cable for data transmission and power.
-
Handheld LED/Infrared Structured Light + VSCEL Lasers for Optimal Accuracy
-
Ability to scan in daylight!
-
Easy to scan People, Objects, and much more
-
Full colour texture capturing included
Technical Specifications
-
Light SourceInfrared VCSEL structured light*
-
Point Distance0.1mm – 3mm
-
Effective Working Distance160mm – 1400 mm
-
Optimal Working Distance400mm
-
FOV (under optimal work distance)434mm x 379mm
-
Scan RateUp to 14fps
-
Data Alignment ModeTexture/ Feature/ Hybrid Alignment/ Global Markers*
-
Full Colour ScanningYes
-
Outdoor ScanningYes
-
Output FormatsOBJ, STL, PLY, ASC, 3MF, P3
-
Scanner Weight0.5kg
-
Scanner Dimensions220mm x 46mm x 55mm
-
Carrying Case Dimensions245mm x 245mm x 90mm
InterfaceUSB 2.0 or above
Supported OSWindows 10/11 64-bit
*Einstar infrared light source, certificated as Class 1 laser product, is safe under all conditions of normal use.
*Global Markers alignment is only available in Object Scan Mode.
(SHIN3D-EINSSTAR)
